Description
User manual and APP download
1, User manual, PC software installation instruction and PC software and Android APP download link :
https://www.mediafire.com/folder/sjun2oadbw5sa/DL24MP-150W-DK
2, IOS APP: search E_test on iphone APP store to download
3. Android APP: search E-test at Google play to down load or https://www.mediafire.com/file/0jiio43c0vuu1wx/U_Meter-Phone_mobile.apk/file
–Product Parameter–
Electrical parameters
Test voltage：2~200V
Working current：0.2~25A
DL24 Discharge power: voltage * current (The actual running current is limited by the maximum power, please adjust the current according to the law of energy conservation)
The built-in over-current, over-temperature, over-power safety protection functions, if the protection interface is popped up, please pay attention to the parameter adjustment, shall adjust to the maximum power, and then discharge, you can first slowly and smoothly adjust the preset value in the start and discharge, in order to adjust up to the maximum power for discharging
7 in 1 main test interface
1. Constant current (CC) test
2. Constant Voltage (CV) Test
3. Constant resistance (CR) test
4. Constant power (CP) test
5. BRT (internal resistance) test
6. PT (DC power) test
7. CT (wire resistance) test

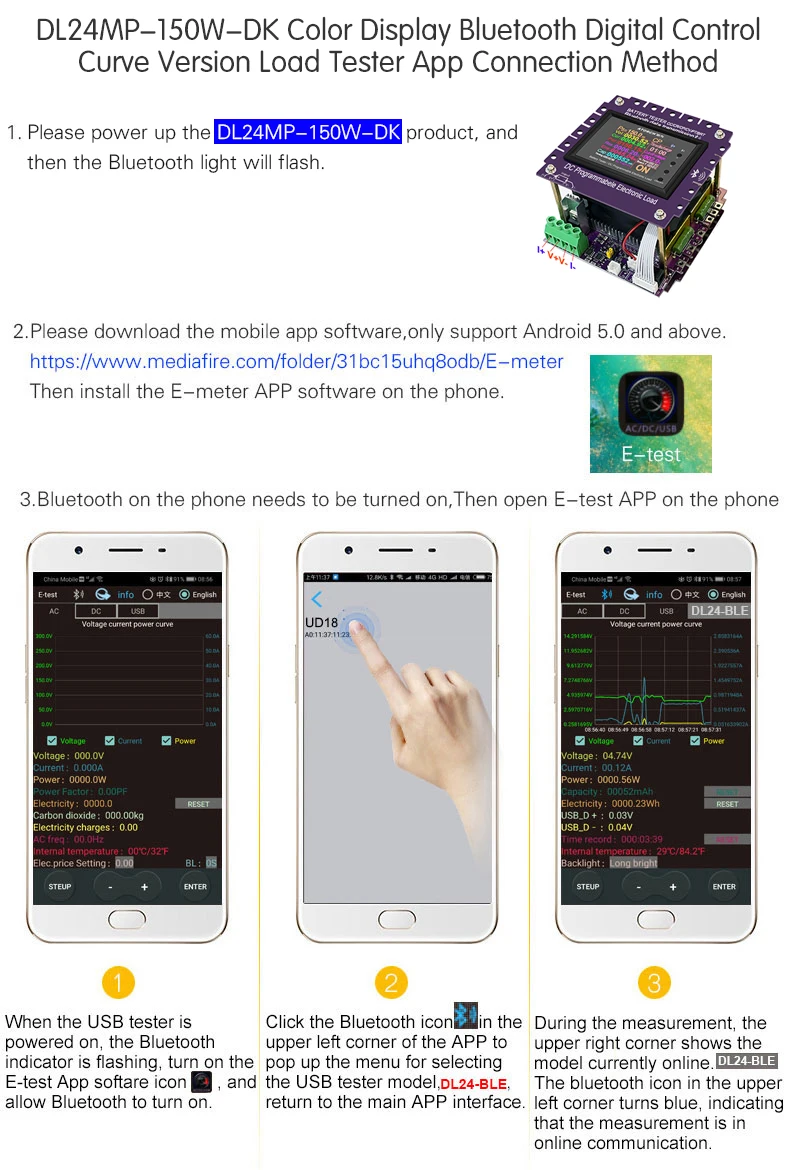

About SOFTWARE QUESTIONS:
1. The APP crashes on my phone, what is the problem ?
A: For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can place order, or else do not buying. If you don’t test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.For PC software, it only support win 7 and Win 10 above for now. For APP, it only support android 5.0 and above.
2. Why are there _BLE and _SPP modes and which one to choose?
A：Our APP adopts the latest connection technology, please do not pair in Bluetooth mode, directly click on the E-test (Android APP name) APP provided by us, click the Bluetooth symbol, E_test (Apple APP) select the _BLE Bluetooth name to proceed connect, that’s it ok!
_BLE:is connected in mobile mode
_SPP:is connected in PC computer mode
3.What is the computer pairing password?
A：Password is “0000” or “1234”
4.Does it support WIFI mode?
A：No support, connected via wireless bluetooth mode！
5.Why does the mobile phone appear blank when opening your APP, and the signal list of _BLE cannot be displayed?
A：Please turn on the GPS positioning of your mobile phone, or in the mobile phone settings, find our APP, open the location information or storage information permission, again reconnect, that’s it ok!
User manual
This product has been upgraded, this manual can be applied to the description of this product
Product Size

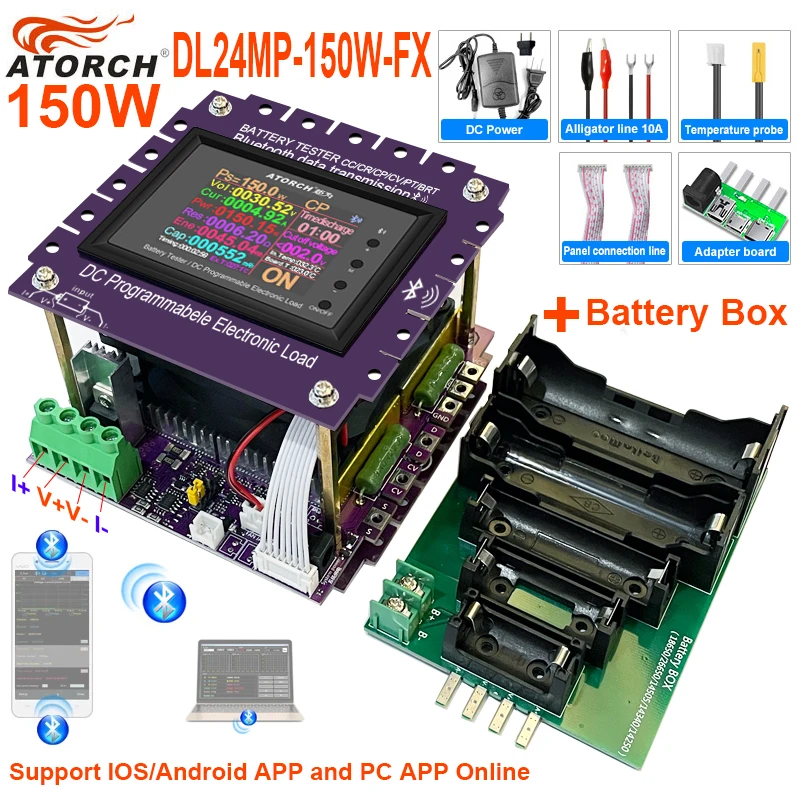

Products list
1.DL24MP-150W-FX Color Display Bluetooth Digital Control Curve Version Load Tesr x1
2.DC12V 1A power supply x1
3.Temperature probe x1
4.Red and black single line crocodile clip line x1
5.US to EU adapter x1
6.Battery test Box 1
