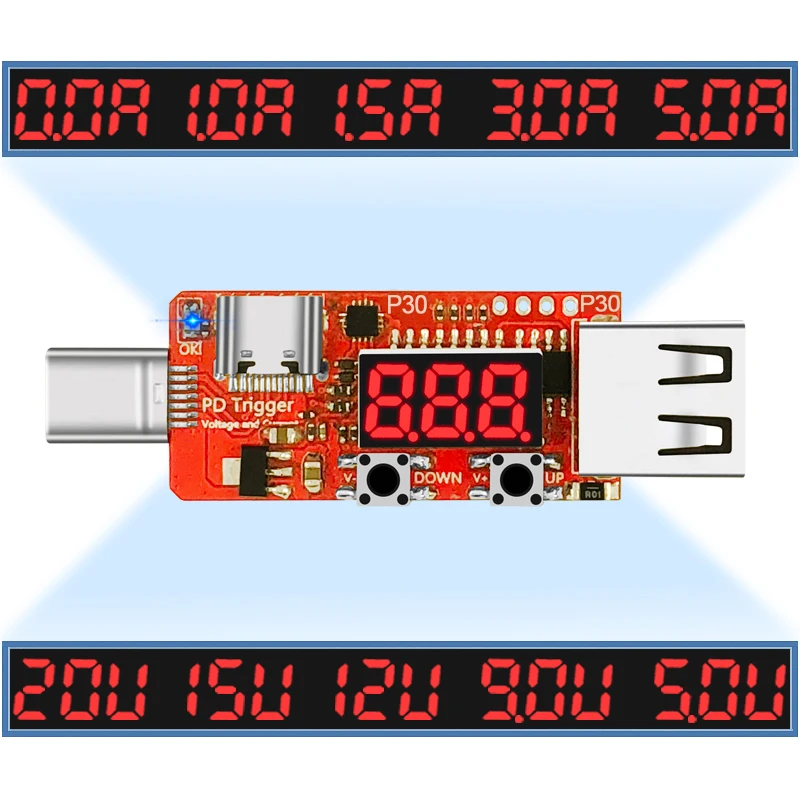

Description

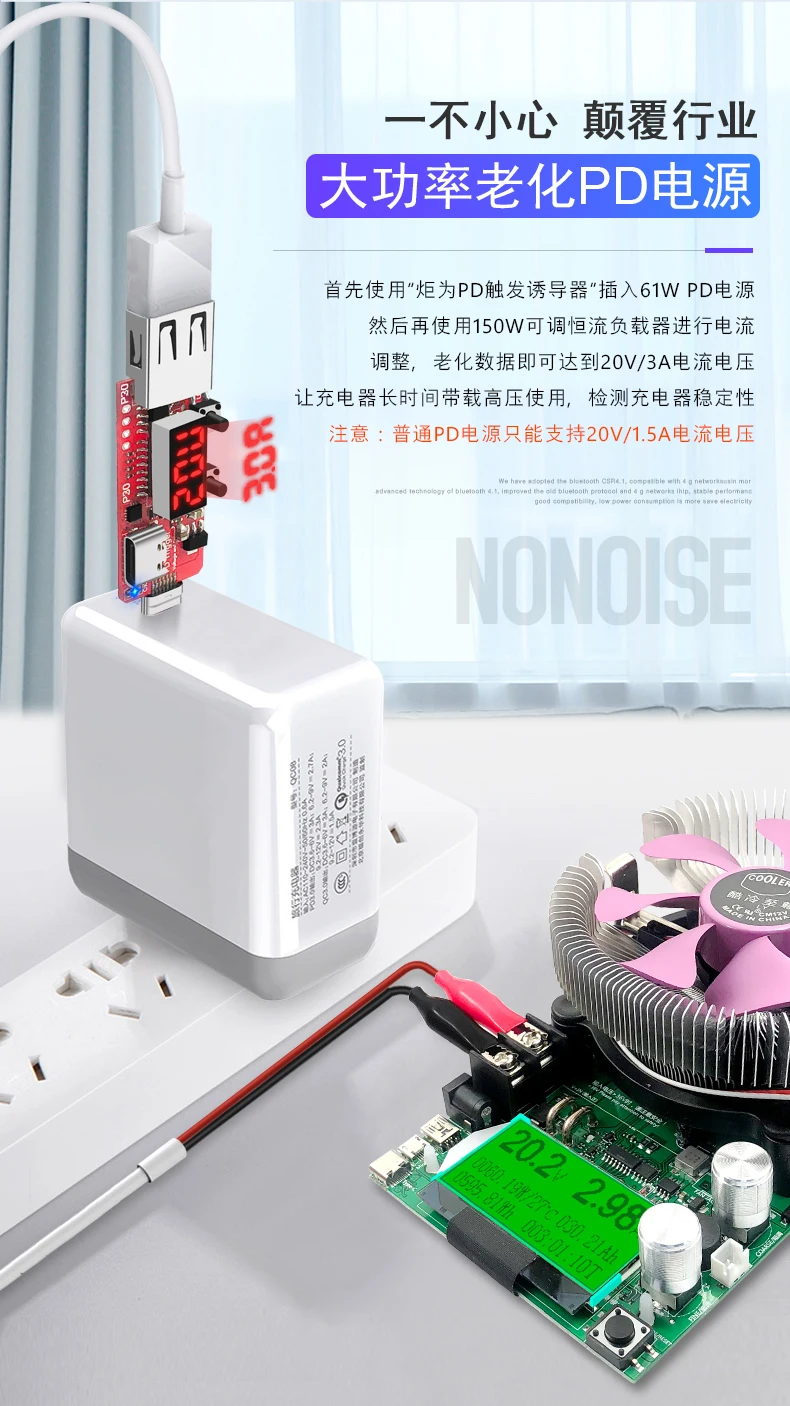

This products can support PD3.0 compatible 2.0 protocol. By sending PD protocol to PD charger or PD power bank and other PD equipment, it can trigger 5V/9V/12V/15V/20V quick charging voltage for various aging testing good or Bad quality , identification of voltage and current power.

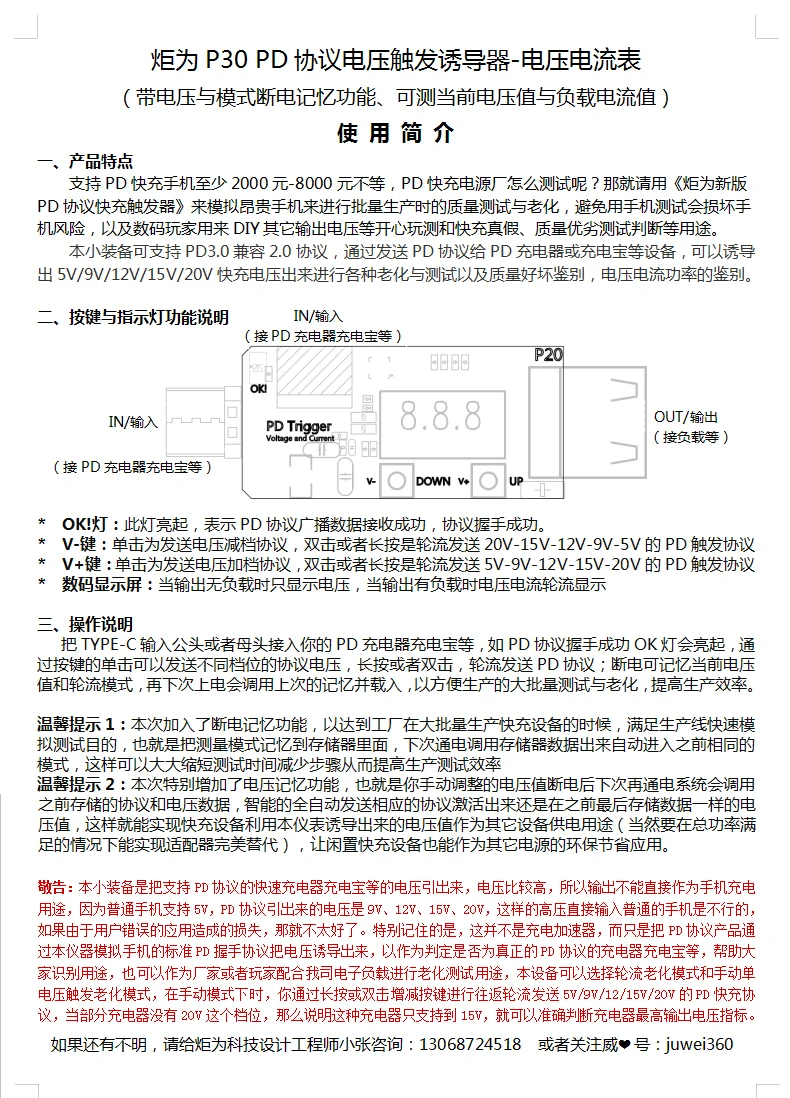

== Instructions ==
Enter TYPE-C input male or female to your PD charger charging PD power bank etc. If the PD protocol handshake is successful, the OK light will light up. You can send the protocol voltage(Eg.5V/9V/12V/15V/20V) of different gears by clicking the button, long press or double click. The PD protocol is sent in turn; the power-off can memorize the current voltage value and the turn-by-turn mode, and the next time the power is turned on, the last memory is loaded and loaded to facilitate high-volume testing and aging of the production, thereby improving production efficiency.
Package included:
1 X PD3.0/2.0 Trigger

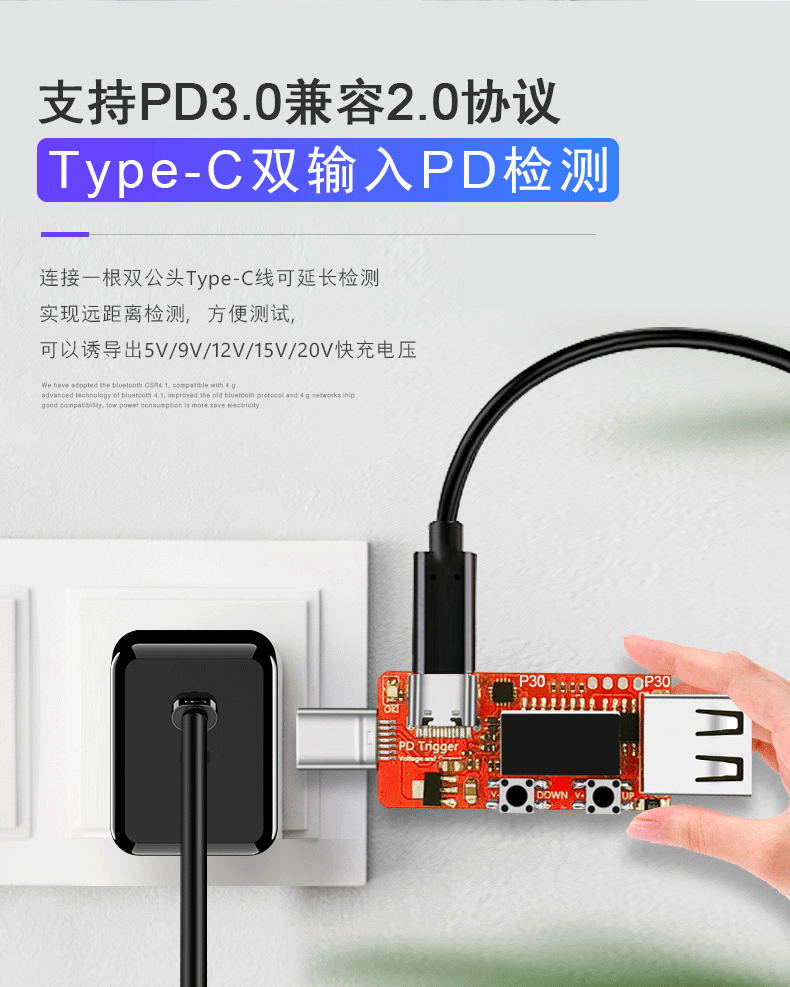

A/A1. Type-C Input (USB C input, PD charger or PD power supply)

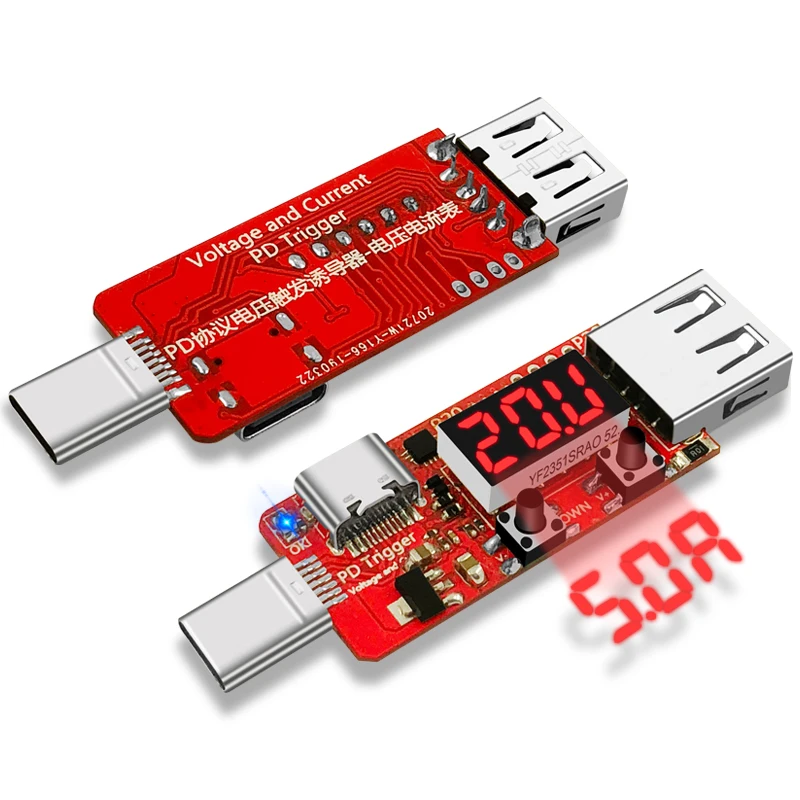

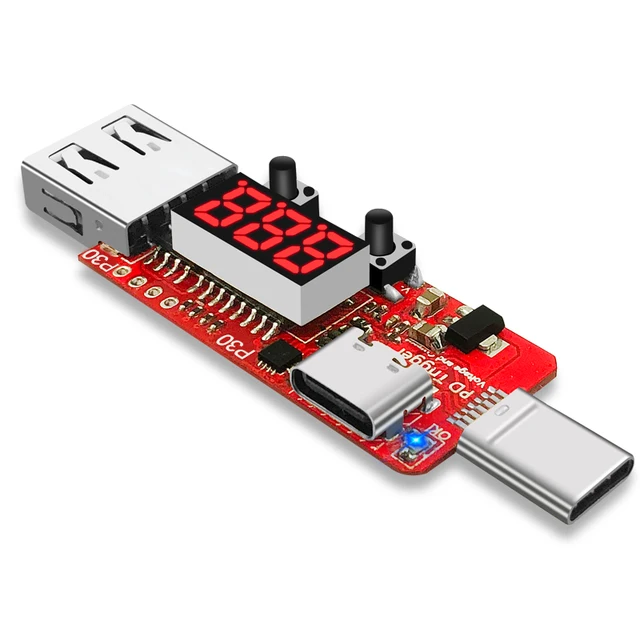

B.OK! Light: This light is on, indicating that the PD protocol broadcast data is successfully received, and the protocol handshake is successful.

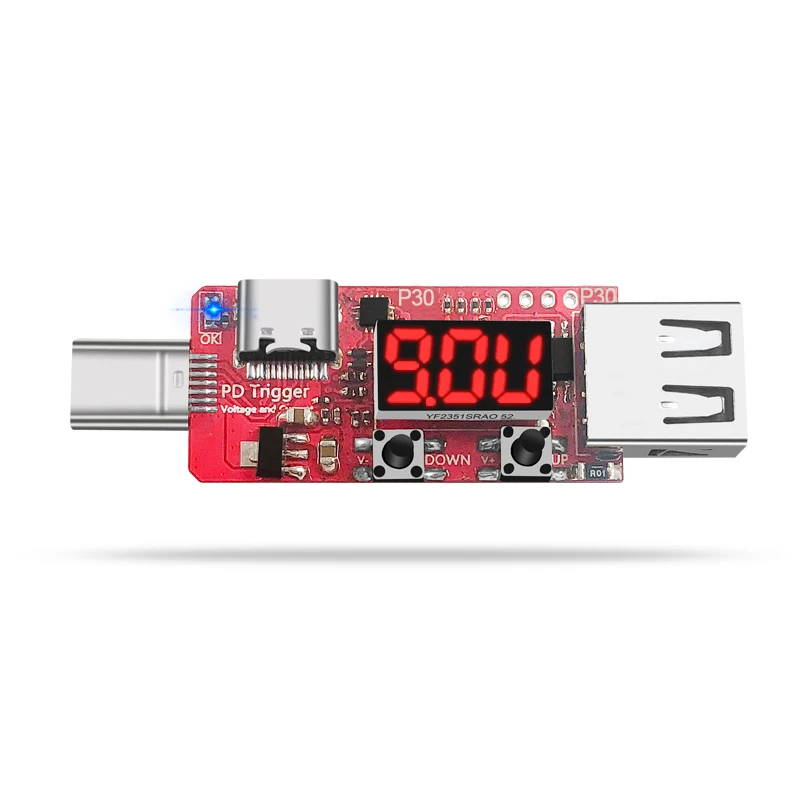

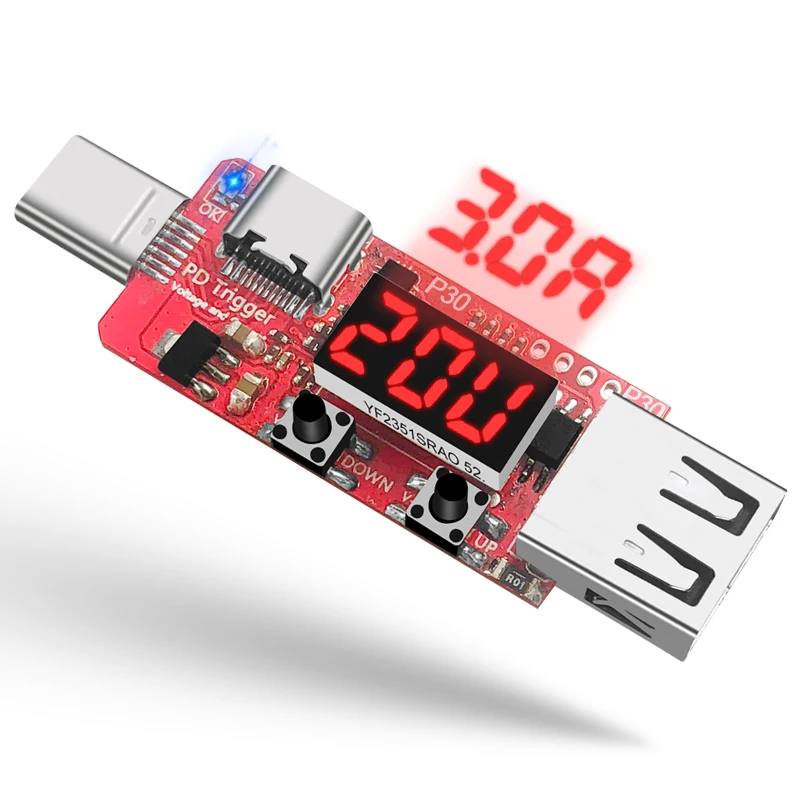

C.Digital tube display, When the output is no load, only the voltage is displayed. When the output has load, the voltage and current are displayed in turn.
D. USB output (can be connected to the load)
E. V-function button, click to send voltage downshift protocol, double click or long press is to send 20V-15V-12V-9V-5V PD trigger protocol in turn
F.Click to add the voltage to the protocol, double-click or long-press to send the 5V-9V-12V-15V-20V PD trigger protocol in turn.
Enter TYPE-C input male or female to your PD charger charging treasure, etc. If the PD protocol handshake is successful, the OK light will light up. You can send the protocol voltage of different gears by clicking the button, long press or double click. The PD protocol is sent in turn; the power-off can memorize the current voltage value and the turn-by-turn mode, and the next time the power is turned on, the last memory is loaded and loaded to facilitate high-volume testing and aging of the production, thereby improving production efficiency.

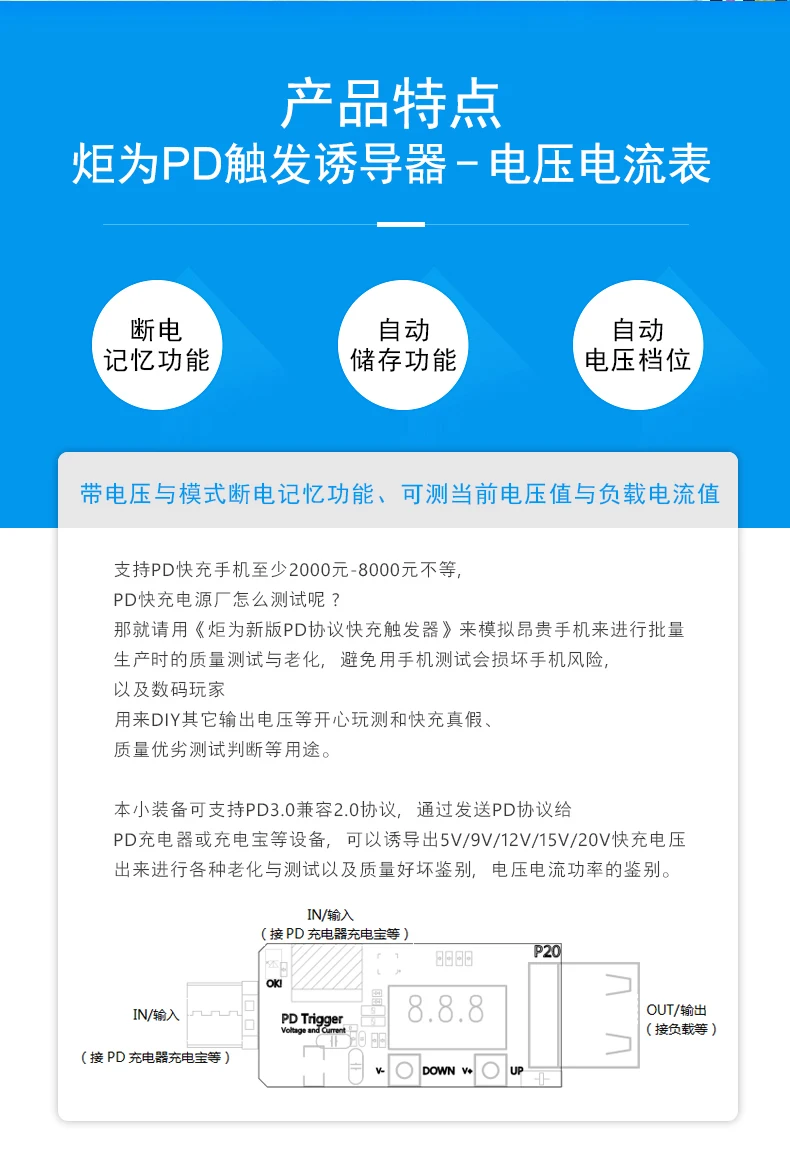

Tip 1: This time, the power-off memory function has been added to meet the purpose of fast simulation test of the production line in the mass production of fast-charge equipment. That is, the measurement mode is memorized in the memory, and the memory data is called out next time. Automatically enter the same mode before, which can greatly shorten the test time reduction step and improve the production test efficiency
Tip 2: This time added a special voltage memory function, that is, the voltage value that you manually adjust after power-off, the next time you re-energize the system will call the previously stored protocol and voltage data, intelligent automatic transmission of the corresponding protocol activated or In the last storage of the same voltage value, the fast charge device can use the voltage value induced by the instrument as the power supply for other devices (of course, the adapter can be perfectly replaced when the total power is satisfied), so that idle idle Charging equipment can also be used as an environmentally friendly application for other power sources.

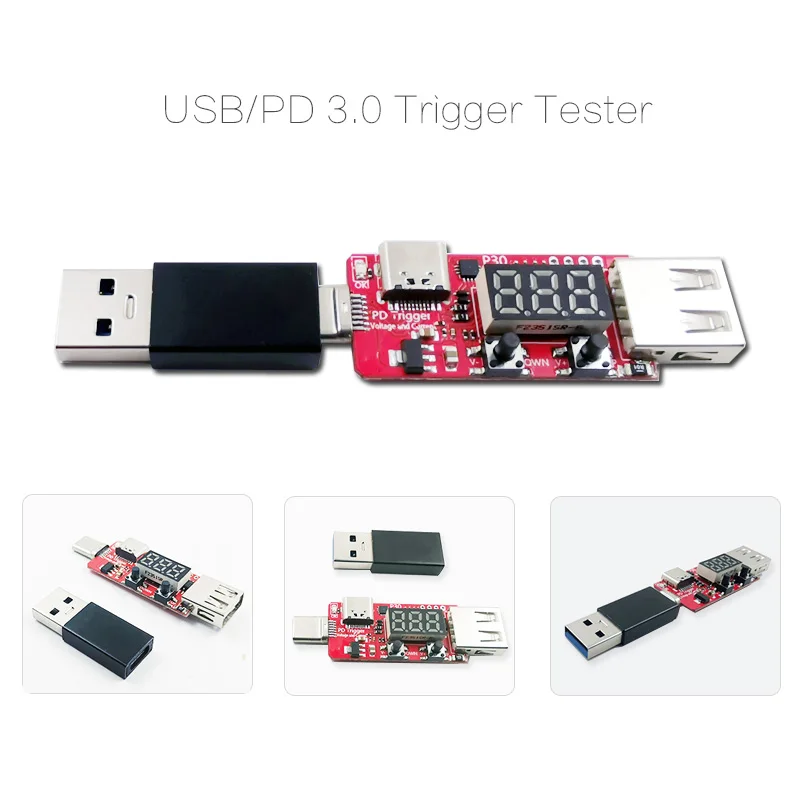

USB A Male conversion Type-c female Black + PD3.0 trigger
USB A Male conversion Type-c female Silvery + PD3.0 trigger
USB A Male conversion Type-c female Golden + PD3.0 trigger
Specification:
– USB female port output
– QC 2.0 5V/9V/12V trigger voltage
– Supports Manual mode and Auto mode
Manual mode: Short press for trigger voltage switch
Please double-click the button (+/-), you can automatically voltage mode!
Package included:
1* QC 2.0 test board

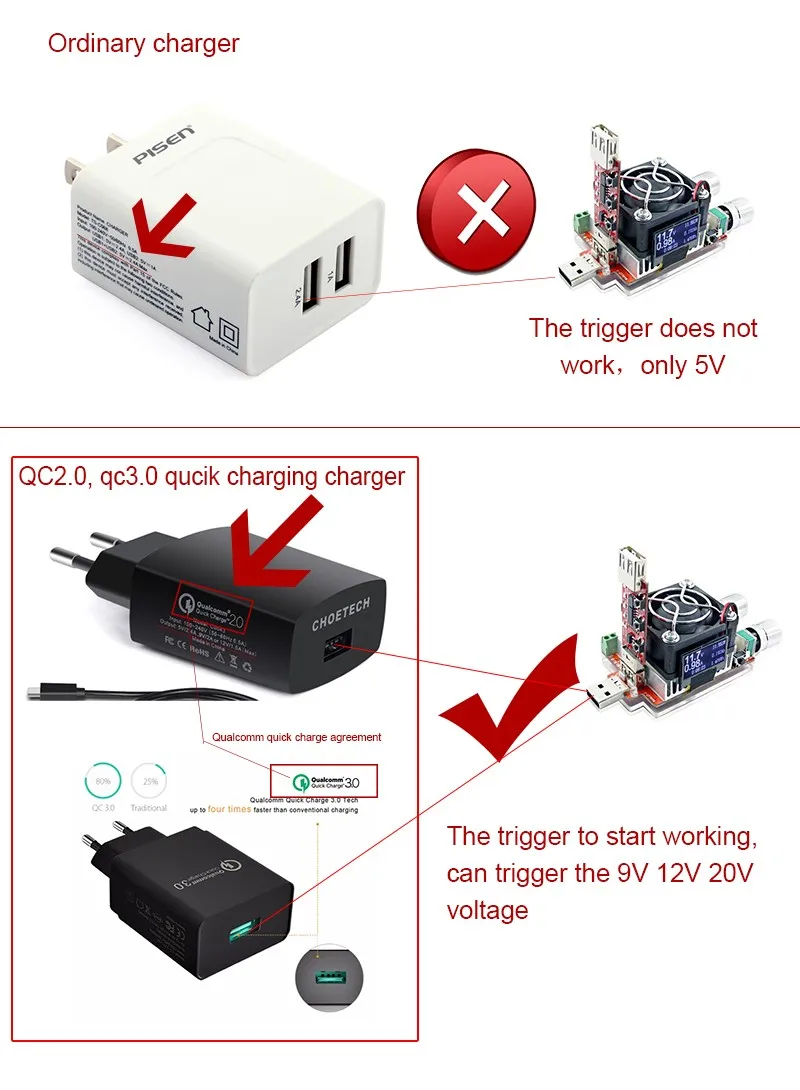

Our company’s latest development is qc3.0qc2.0 fast charging tester,aim to solving the test without real cell,and aging problem.Testing or aging is no longer the difficulty for fast charger manufactures.
Qc2.0,with 3-31V input voltage,support 5V,9V,12V,20V;
There’s 3modes for operate:
Manual mode
Automatic mode
Qc3.0 mode
Application:Apply to latest fast charging external battery,car charger, power adapter, volume production aging
Product Features
PCBA Name: JUWEI-QC3.0-V02
PCBA Area: 64*17*1.0mm
Function description

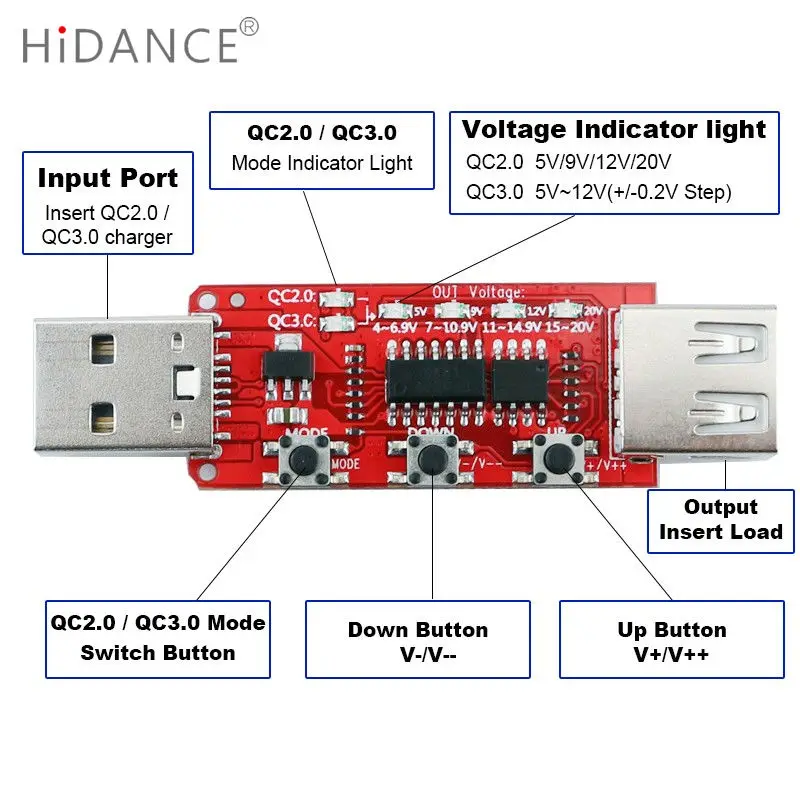

Manual mode: When test pane connect to productions,the default output voltage is 5V,press the button to change output voltage,then correspondent LED light up.If this process is unsuccessful,LED indicators of 5V,9V,12V,20V flickered together for 3times ,then back to default 5V.
Automatic mode: When test pane connect to productions,press the button for 3s and change to automatic mode,LED indicators of 5V,9V,12V,20V flickered together for 3times ,then 5V light up.At this mode,each voltages change every 2s.
QC3.0 mode: Press the button and hold for 3second,QC3.0 flickered for 3 times,at this state,IC is automatically matched to the load as optimal power status,change into the next file per 0.2V.This function require productions and load both have qc3.0 protocol.
Characteristics:
1.PCBA use the smart detection to detect QCOM QC2.0-QC3.0 protocol to choose output voltage;
2.Fully compatible all QCOM QC2.0-QC3.0 charge and QCOM QC2.0-QC3.0 external battery on the market;
3.Through the button choose the right output voltage the relatively LED indicators up;
4.Do not drop the line,and the data of measurement is accurate;
5.Used for produce:Giving your productions test data more convincing,ensure that there’s 100% high quality produce.
6.Used for sale:convenience,speed,light,beauty,generous
7.Profession, attentively, protective ,achieve automatic test for batch of productions and perfectly connect to electronic load.
