Опис
Feature:
– Compatible with European standard wall boxes, simple in wall installation.
– 4-inch HD LCD, IPS, multi touch screen.
– ZigBee gateway function, APP remote control. A good substitute for another Tuya ZigBee gateway at home,and directly use the control panel as a gateway for adding Tuya ZigBee devices in App for intelligent controls,up to 80 ZigBee sub devices available for being added.

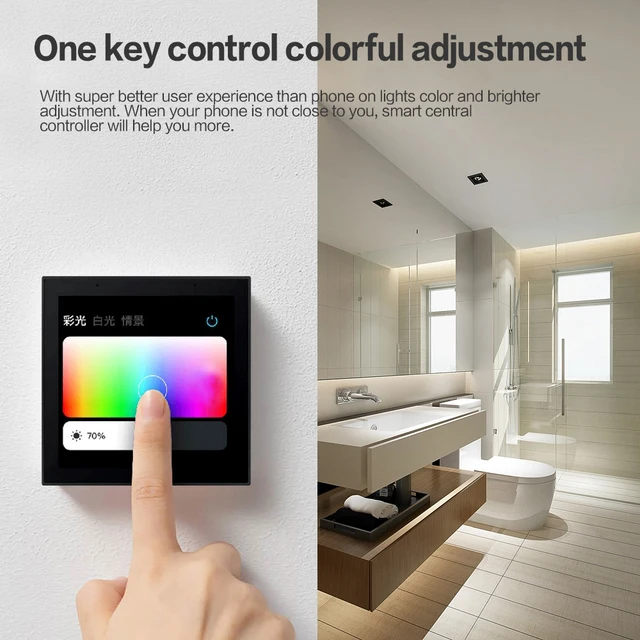

– Control the lights, curtains, air conditioners, and all other smart home devices. Configure Smart Home scenes in the APP, turn on the scene mode with one touch on the screen.
– One Smart Control Panel could control all your smart switches, smart plugs, lights, air conditioners, curtains, security locks,smart sensors,up to 80pcs TUYA Zigbee sub devices.
Specifications:
– Product Name:Smart Multi-functional Control Panel
– Input Power:100-240VAC,50/60Hz
– Working Temperature:0℃~40℃
– Working Humidity:5%-90%RH(non-condensing)
– Wireless Protocol:ZigBee
– Dimensions:86x86x10 mm (without the base | outside the wall ) 86x86x36.6 mm (with the base) 60.9×62.9×24.6mm (back base dimension) Bolt hole spacing 60mm.
Installation instructions:
– Turn off the main power in the electricity box and confirm the fire wire is not alive with a test pencil.
– Remove the base of the Smart Switch and install it in the wall box.
– Check the wires and make sure the wires are in good contact with the terminals and no exposed cooper wires.
– Fasten the base to the wall box with mounting screws and fix the Smart Switch back to the base.
– Note that the screws should not be fixed too tight during installation in case any deformation or damage to the screen and hardware.
– If the Smart Switch is not flat after installation, do not press the screen violently, please check the wall box and the base installation at first.
