Description
3KW Pure Sine Wave Inverter
3000W pure sine wave inverter is perfect for converting AC 230V to DC 24V and vice versa. This inverter boasts a surge power (5 seconds) of 6000W and can be used to power a range of household and office appliances, such as ovens, lamps, TVs, and fans, providing a reliable and uninterrupted power supply. Whether you’re looking for a backup power source or a primary power supply for your appliances, this inverter is the perfect solution.
Built-In Solar Charge Controller

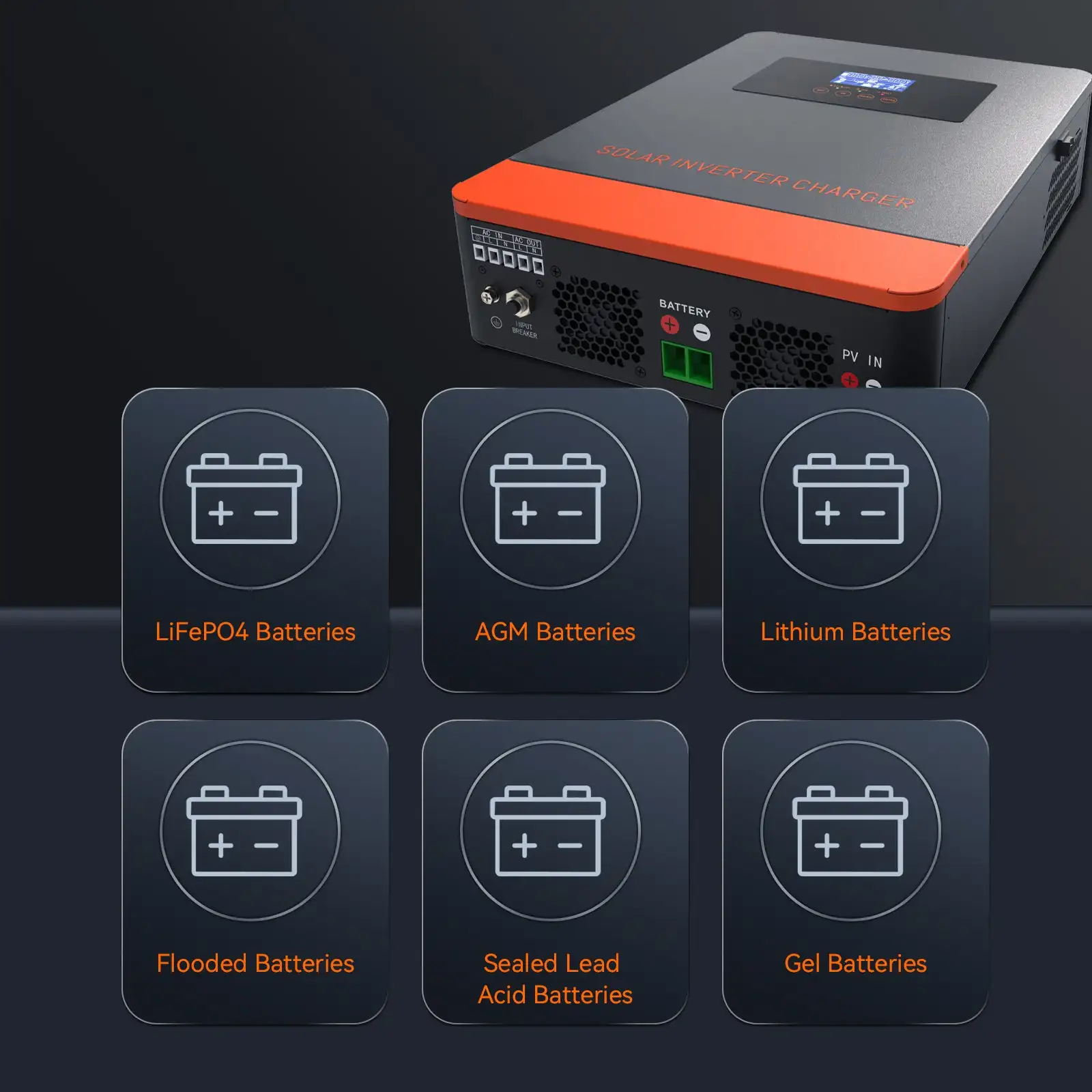

The integrated MPPT solar charge controller supports a wide range of battery types, including 24V AGM batteries, Flooded batteries, and lithium batteries (User Mode). With an MPPT voltage range of 90-430V, it can power a variety of appliances, such as tube lights, fans, refrigerators, and air conditioners. This product ensures optimal charging efficiency and a reliable power supply for your solar energy system.
Multiple Charging Modes & Output Modes
The POW-HVM3.0KW-24V solar inverter charger maximizes energy usage with 3 charging modes (Only Solar, Solar Priority, and Utility Priority) and 2 Solar Priority output modes (SUB, SBU）. Its power-saving mode reduces no-load consumption. It is a versatile and efficient option for powering various loads in off-grid and hybrid systems.
|
Table 1 Line Mode Specifications |
||
|
INVERTER MODEL |
1.8KW12V |
3.0KW24V |
|
Input Voltage Waveform |
Sinusoidal (utility or generator) |
|
|
Nominal Input Voltage |
230Vac |
|
|
Low Loss Voltage |
170Vac±7V (UPS); 90Vac±7V (Appliances) |
|
|
Low Loss Return Voltage |
180Vac±7V (UPS); 100Vac±7V (Appliances) |
|
|
High Loss Voltage |
280Vac±7V |
|
|
High Loss Return Voltage |
270Vac±7V |
|
|
Max AC Input Voltage |
300Vac |
|
|
Nominal Input Frequency |
50Hz / 60Hz (Auto detection) |
|
|
Low Loss Frequency |
40±lHz |
|
|
Low Loss Return Frequency |
42±lHz |
|
|
High Loss Frequency |
65±lHz |
|
|
High Loss Return Frequency |
63±lHz |
|
|
Output Short Circuit Protection |
Circuit Breaker |
|
|
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
|
|
Table 2 Inverter Mode Specifications |
||
|
INVERTER MODEL |
1.8KW 12V |
3.0KW24V |
|
Rated Output Power |
2200VA/1800W |
3200VA/3000W |
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Output Voltage Regulation |
230Vac±5% |
|
|
Output Frequency |
50Hz |
|
|
Peak Efficiency |
94% |
|
|
Overload Protection |
5s@≥ 150％ Ioad; 10s@ 110%〜150% Ioad |
|
|
Surge Capacity |
2* rated power for 5 seconds |
|
|
Nominal DC Input Voltage |
12Vdc |
24Vdc |
|
Cold Start Voltage |
11.5Vdc |
23.0Vdc |
|
No Load Power Consumption |
<25W |
<35W |
|
Table 3 Charge Mode Specifications |
||
|
Utility Charging Mode |
||
|
INVERTER MODEL |
1.8KW 12V |
3.0KW24V |
|
Charging Algorithm |
3-Step |
|
|
AC Charging Current (Max) |
60 Amp (@V I/p 230Vac) |
|
|
Bulk Charging Voltage Flooded Battery |
14.6Vdc |
29.2Vdc |
|
Bulk Charging Voltage AGM / Gel Battery |
14.1Vdc |
28.2Vdc |
|
Floating Charging Voltage |
13.5Vdc |
27Vdc |
|
MPPT Solar Charging Mode |
||
|
INVERTER MODEL |
1.8KW12V |
3.0KW24V |
|
Max. PV Array Power |
2000W |
3000W |
|
Nominal PV Voltage |
240Vdc |
|
|
PV Array MPPT Voltage Range |
55~430Vdc |
|
|
Max. PV Array Open Circuit Voltage |
450Vdc |
|
|
Max Charging Current (AC charger plus solar charger) |
80Amp |
|
|
Table 4 General Specifications |
||
|
INVERTER MODEL |
1.8KW12V |
3.0KW 24V |
|
Operating Temperature Range |
-10°Cto50°C |
|
|
Storage temperature |
-15°C~ 60°C |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
