Description
High Frequency Off Grid Solar Inverter
PV1800 VPK Series (1-5KW)
PV1800 VPK is a multi-function inverter/charger, combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
-
Pure sine wave output
-
Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
-
Built-in PWM 50A/60A solar charge controller
-
New SUB working mode(Solar-Utility-Battery working mode) for 4K-5K series
-

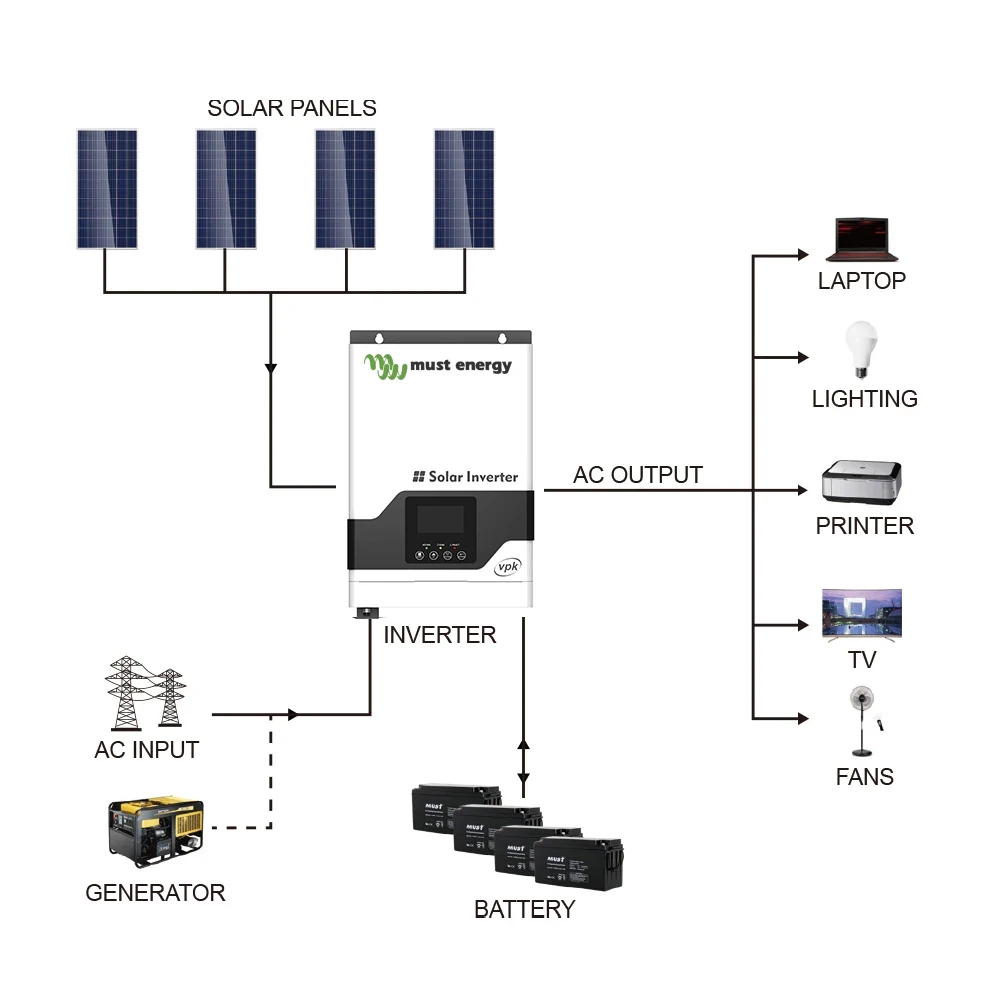

Combining solar system, AC utility, and battery power source to supply continuous power
-
Overload, short circuit and deep discharge protection
-
Parallel operation with up to 3 units (Available for 4KW/5KW only)
-
Cold start function
-
Support USB, RS485 monitoring function
-
WIFI remote monitoring (optional)
-
Compatible to generator
|
MODEL |
PV18-1012 VPK |
PV18-2024 VPK |
PV18-3024 VPK |
PV18-4048 VPK |
PV18-5048 VPK |
|
Nominal Battery System Voltage |
12VDC |
24VDC |
48VDC |
||
|
INVERTER OUTPUT |
|||||
|
Rated Power |
1000W |
2000W |
3000W |
4000W |
5000W |
|
Surge Power |
2000W |
4000W |
6000W |
8000W |
10000W |
|
Waveform |
Pure sine wave |
||||
|
AC Voltage Regulation (Batt.Mode) |
(220VAC~240VAC)±5% |
||||
|
Inverter Efficiency(Peak) |
93% |
||||
|
Transfer Time |
10ms (UPS / VDE4105) 20ms (APL) |
||||
|
AC INPUT |
|||||
|
Voltage |
230VAC |
||||
|
Selectable Voltage Range |
170~280VAC(For personal computer) / 90~280VAC(For home appliances) / 184~253VAC(VED4105) |
||||
|
Frequency Range |
50Hz / 60Hz(Auto sensing) |
||||
|
BATTERY |
|||||
|
Normal voltage |
12VDC |
24VDC |
48VDC |
||
|
Floating Charge Voltage |
13.7VDC |
27.4VDC |
54.8VDC |
||
|
Overcharge Protection |
15.5VDC |
30VDC |
60VDC |
||
|
SOLAR CHARGER & AC CHARGER |
|||||
|
Maximum PV Array Open Circuit Voltage |
55VDC |
75VDC |
80VDC |
105VDC |
|
|
Standby Power Consumption |
2W |
2W |
2W |
||
|
(PWM)Maximum Solar Charge Current |
50A |
50A |
60A |
60A |
|
|
Maximum AC Charge Current |
10A or 20A |
10A or 20A |
20A or 30A |
60A |
|
|
Maximum ChargeCurrent |
70A |
70A |
80A |
120A |
|
|
MECHANICAL SPECIFICATIONS |
|||||
|
Machine Dimensions (W*H*D)(mm) |
225*355*92 |
225*355*92 |
272*355*100 |
297.5*468*125 |
|
|
Package Dimensions (W*H*D)(mm) |
405*373*205 |
405*373*205 |
465*373*231 |
618*415*261 |
|
|
Net Weight(kg) |
5.0 |
5.5 |
7.8 |
12 |
|
|
Gross Weight(kg) |
6.0 |
6.5 |
10.3 |
13.5 |
|
|
OTHER |
|||||
|
Humidity |
5% to 95% Relative humidity (Non-condensing) |
||||
|
Operating Temperature |
0°C~50°C |
||||
|
Storage Temperature |
-15℃ ~60℃ |
||||
