Description
GVDA Electric Soldering Iron Digital Welding Tool Ceramic Heater Welding Solder Rework Station Heat Pencil Smart Solder Iron
GD300 is an original electric soldering iron.It is a portable and easy-to-use electric soldering iron adopting the internal heating working mode with dual temperature sensor and acceleration extreme cooperate,reach the set the temperature only few seconds. OLED screen to display the paramater with large temperature adjustable range(80-420 Celsius degree). It is the indispensable tools for electronic worker.
1. Up to 65W power, 8S rapid heating
2. Uses USB-C interface and PD/QC protocol is supported
3. Aluminum alloy metal body, ergonomic design, good texture
4. PID precise temperature control
5. OLED HD screen, the working state of the soldering iron is clear at a glance
6. Automatic sleep/vibration sensing and other functions are available
7. Internal Heating design with dual temperature sensor
8. Support automatic sleep
9. Automatic standby
10. Vibration sensing
11. Intelligent temperature compensation
1,Temperature control:80-420°C
2,Interface:USB type-C
3,Fast charging support:PD/QC protocol
4,Operating voltage:5-20V
5,Screen: 0.87″ OLED(128*32 pixels)
6,Temperature unit:°C/ °F
7,Language: English/ Chinese
8,Handle size:111*17*15mm

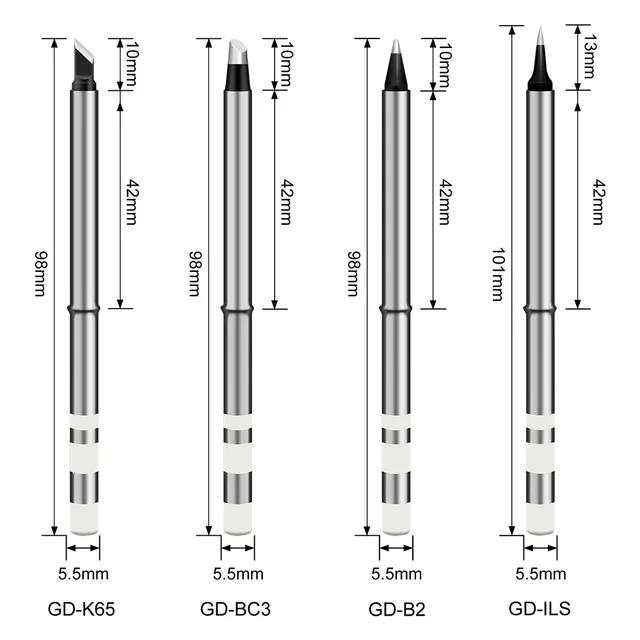

9,Size of solder iron head: Length 100mm,Diameter 5.5mm
10,Length of whole machine:171mm
11,Overall weight:37g
12,Power:65W
Package contents
1*Soldering iron
1*Cable
1*Stand
1*Solder wire
Smart portable soldering Iron
upgraded with more ergonomic appearance design: anti-slip plastic handle and pluggable ball-nut tip installation, larger led screen
Maximum power up to 65W
Fast to melt in, fast heating,8s rapidly heating up.
PID precise temperature control
Temperature accuracy less than 1%.Internal Heating design with dual temperature sensor and acceleration extreme cooperate ensure fast heating speed,reach the set the temperature only few seconds
Universal type-c interface
With soft silicone rubber USB type C cable with high temperature resistance

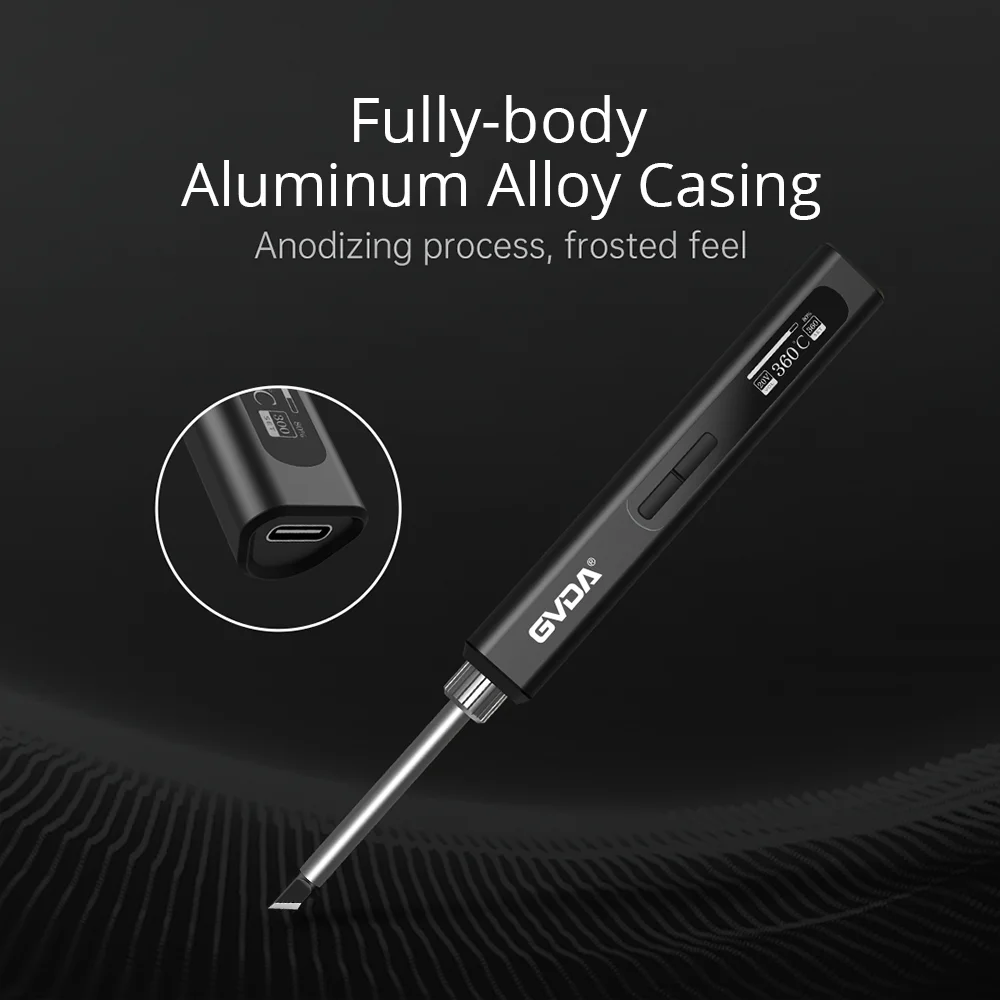

Fully-body aluminum alloy casing
Bold use of dazzling gradient color, let the tool no longer monotonous.The triangular body design with large arc edges also makes it m ore comfortable to hold.
Only 2 buttons, simple and efficient operation
The interactive logic is also simple and clear that even the first time you use it for welding, it is as easy as pie.
Digital OLED HD display
OLED screen to display the parameter with large temperature adjustable range(80-420 celsius degree). It is the indispensable tools for electronic worker.

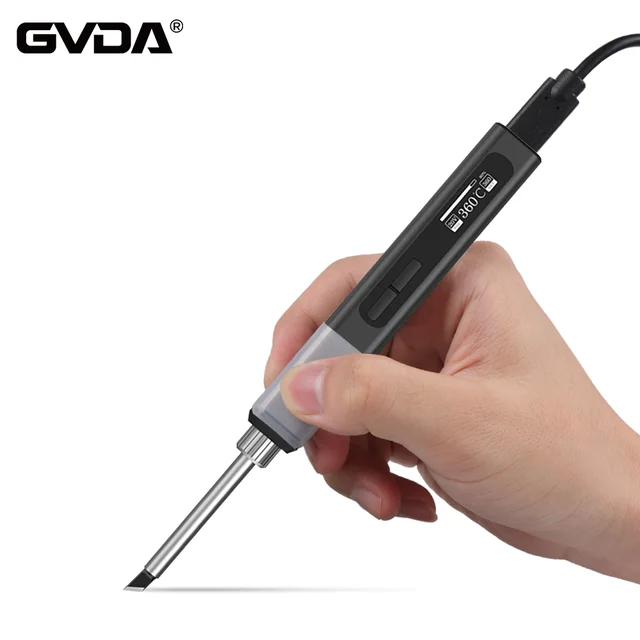

Mini pocket size
Compact size with pen shape design and only 37g light weight easy to handle and carry
Ceramic internal heating core
High temperature resistance, oxidation resistance, and high heating efficiency.It is only 5.5cm(exposed part),making it more comfortable to hold on the elbow.
1000 times rigorous plugging test, super long life
Heat resistance silicone insulated sheath
Efficiently prevent handle overheating to affect the use of experience, but also improve the grip feel.

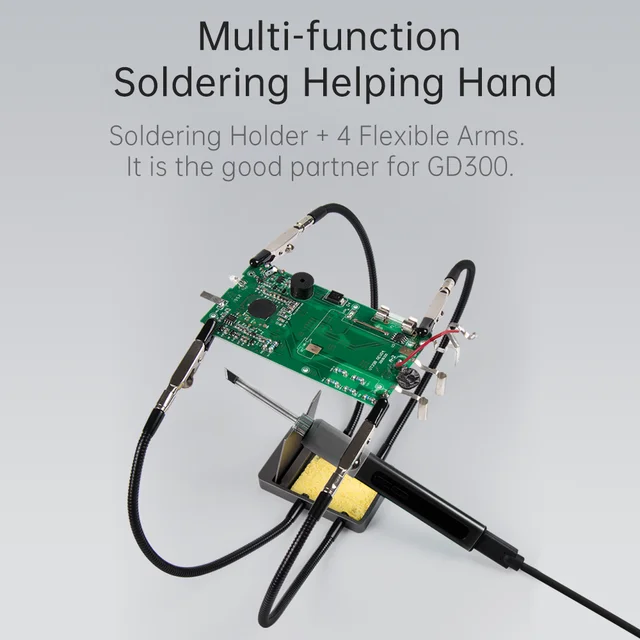

Multi-function soldering helping hand
Soldering holder + 4 flexible arms. This holder is a good partner for GD300
