Description
GIRIER Tuya ZigBee Smart Thermostat, Electric/Water Heating/Gas Water Boiler Temperature Controller, Works with Alexa Hey Google, Tuya ZigBee Hub Required
DESCRIPTION
Create Your Smart Heating System
Create your smart heating system with our smart ZigBee thermostat, including water/electric heating and Water gas boiler heating which meet your different needs. With the smart thermostat, you can live in a suitable temperature easier, making your home always warm and comfortable.
Tuya ZigBee Hub Required
Tuya ZigBee gateway is required for pairing and APP control. Without the hub, you can only operate the thermostat manually.
Remote Control it Wherever You are
After pairing ZigBee thermostat to TuyaSmart or Smart Life APP via Tuya ZigBee hub, you can easily control the temperature of the heating whenever and wherever you are. Creating the most comfortable living temperature by easier operation.
5+1+1 Weekly Programming Mode
Support manual or APP setting 5+1+1 mode for four stages per day. Easily set the suitable time and temperature according to your needs, both time-saving and energy saving, making your home smarter and comfortable.
Convenient Voice Control
Just need to give simply voice commands to Alexa/Google Home Assistant to control the smart ZigBee thermostat. Free your hands and enjoy your smart life from now on.
LED Display and Capacitive Touch Buttons
Large LED display provide more friendly interface and capacitive touch buttons makes the interaction smoother.
Professional Protection Designed for Your Security
Child lock, high/low temperature protection and professional certificates from CE,RoHS and FCC provide a safer security system for your home.
Power-off Protection.
Don’t worry about the data and setting will lose after power-off. The smart thermostat will save all your settings safely.

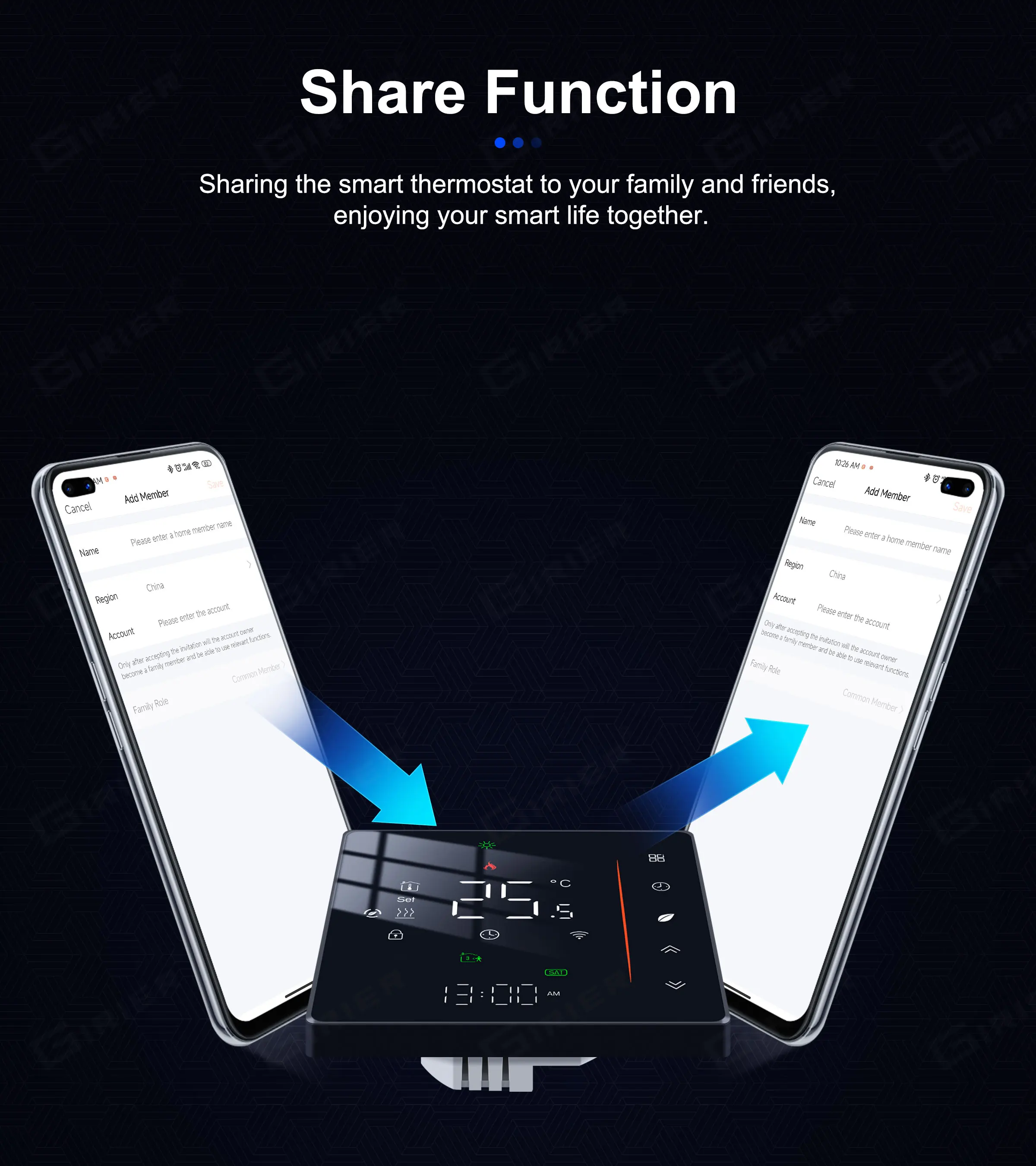

Share Function
Sharing the smart thermostat to your family and friends, enjoying your smart life together.
Group Function
Support for creating groups to achieve centralized control of multiple thermostats.
SPECIFICATION
Rated Voltage: 95~240VAC,50~60HZ
Current Load: 5A (Water/Gas Boiler/Water Heating); 16A (Electric Heating)
Sensor: NTC (Only electric heating need it)
Temperature Accuracy:±1℃
Set Temp. Range:5~35℃
Room Temp. Range:5~99℃
Display Temp. Range:5~99℃
Ambient Temp.:0~45℃
Power Consumption: ＜1.5W
Timing Error: ＜1%
Shell Material: PC+ABS(Fireproof)
Installation Box: 86*86mm Square or European 60mm Round Box
Wire Terminals: Wire 2*1.5mm² or 1*1.25mm²
Protection Class: IP20
Buttons: Capacitive Touch Buttons
APP: TuyaSmart/Smart Life
Voice Control: Alexa/Google Home Assistant
Hub Requirement: Tuya ZigBee Hub
Warm Tips:
1. Only the Electric heating version need extra sensor, which included in the parcel.
2.The low/high temperature protection can only be set manually.
3.The thermostat will not open until the difference between the temperature and the target temperature reaches the set value of the blind zone temperature.
4.If you have any question,please feel free to contact to us. We will always be here with you.
Tuya ZigBee Gateway is Required
Tuya ZigBee Gateway is a must for pairing and APP control.
Remote Control It from Anywhere at Anytime
Support 5+1+1 Weekly Programming Mode
Voice control the smart thermostat,easier your life.
Share Function
Group Function
One-tap to control all.
Professional Protection Designed for Your Security
LED Display and Capacitive Touch Buttons
More friendly interface and smoother interaction .
SPECIFICATION
Package Listing
FAQs:
1.Q:What can I do if the display shows nothing after power on?
A:Please check if the terminals between LCD panel and Power Unit Box is loosen.
2.Q: If the thermostat works but without the output?
A:Please try to use a new LCD panel or new Power Unit Box to replace the old one.
3.Q: What can I do if the room temp. is a little bit different from the actual?
A: Please manually adjust the “Temperature Compensation” in item 1 of high senior options.
4.Q: Can I pair the thermostat with other hub?
A:No,please use Tuya ZigBee hub and Tuya APP for pairing.
