Description

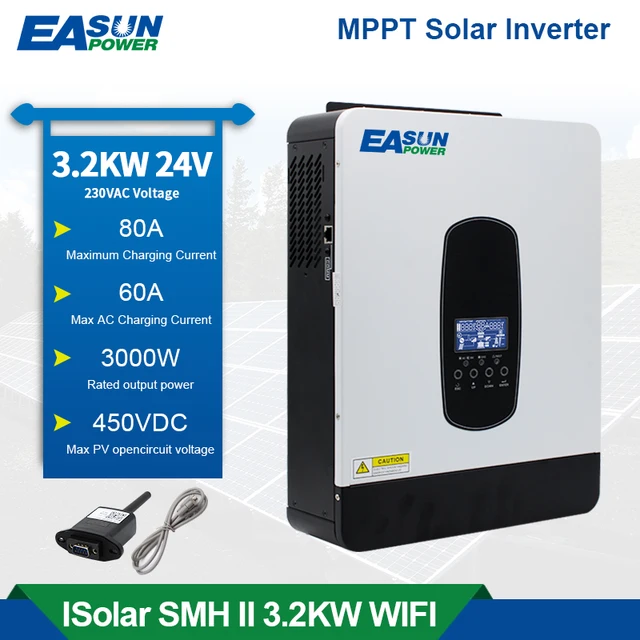

Easun Power 3200VA 3000W Solar Inverter 24V Built in MPPT 80A Solar Controller 230VAC Out-put Voltage Max PV 450VDC Support WIFI
Features:
1)Pune sine wave inverter
2)Configurable input voltage range for home appliances and personal computers via LCD setting
3)Configurable battery charging current based on applications via LCD setting
4)Configurable AC/Solar Charger priority via LCD setting

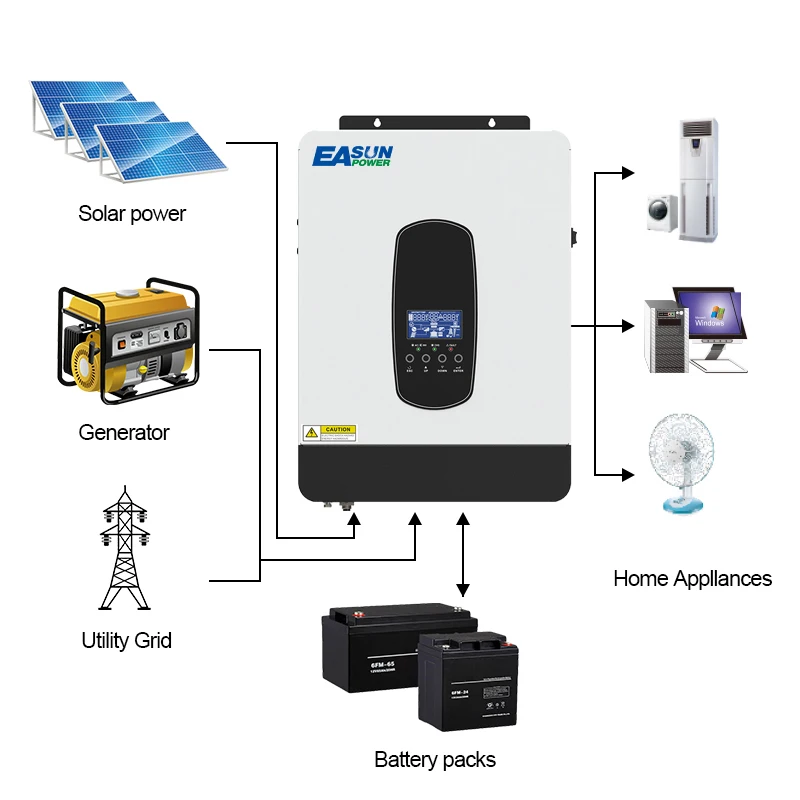

5)Compatible to mains voltage or generator power
6)Auto restart while AC is recovering
7)Overload/ Over temperature/ short circuit protection
8)Smart battery charger design for optimized battery performance
9)Cold start function
10)WIFI/GPRS(Option)
| MODEL |
Isolar SMH 2.2KW |
Isolar SMH 3.2KW |
| RatedPower |
2200VA/1800W |
3200VA/3000W |
| INPUT | ||
| Voltage |
230VAC |
|
| SelectableVoltageRange | 170-280VAC(forpersonalcomputers)90-280VAC(forhomeappliances) | |
| FrequencyRange |
50Hz/60Hz(Autosensing) |
|
| OUTPUT | ||
| ACVoltageRegulation(Batt.Mode) |
230VAC±5% |
|
| Surgepower |
4400VA |
6400VA |
| TransferTime |
10ms(forpersonalcomputers)20ms(forhomeappliances) |
|
| Waveform |
PureSineWave |
|
| BATTERY&ACCHARGER | ||
| BatteryVoltage |
12VDC |
24VDC |
| FloatingChargeVoltage |
13.5VDC |
27VDC |
| OverchargeProtection |
15.5VDC |
31VDC |
| Maximumchargecurrent |
60A |
|
| SOLARCHARGER | ||
| MAX.PVArrayPower |
2000W |
3000W |
| MPPTRange@OperatingVoltage |
55-450VDC |
|
| MaximumPVArrayOpen
CircuitVoltage |
450VDC |
|
| MaximumChargingCurrent |
80A |
|
| MaximumEfficiency |
98% |
|
| PHYSICAL | ||
| Dimension.D*W*H(mm) |
405x286x98mm |
|
| NetWeight(kgs) |
4.5kg |
5.0kg |
| CommunicationInterface |
RS232/RS485(Standard)/GPRS/WIFI(Optional) |
|
| OPERATINGENVIRONMENT | ||
| Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
| OperatingTemperature |
-10°Cto55°C |
|
| StorageTemperature |
-15°Cto60°C |
|
